SANEC TC14433AEPG - A.1426

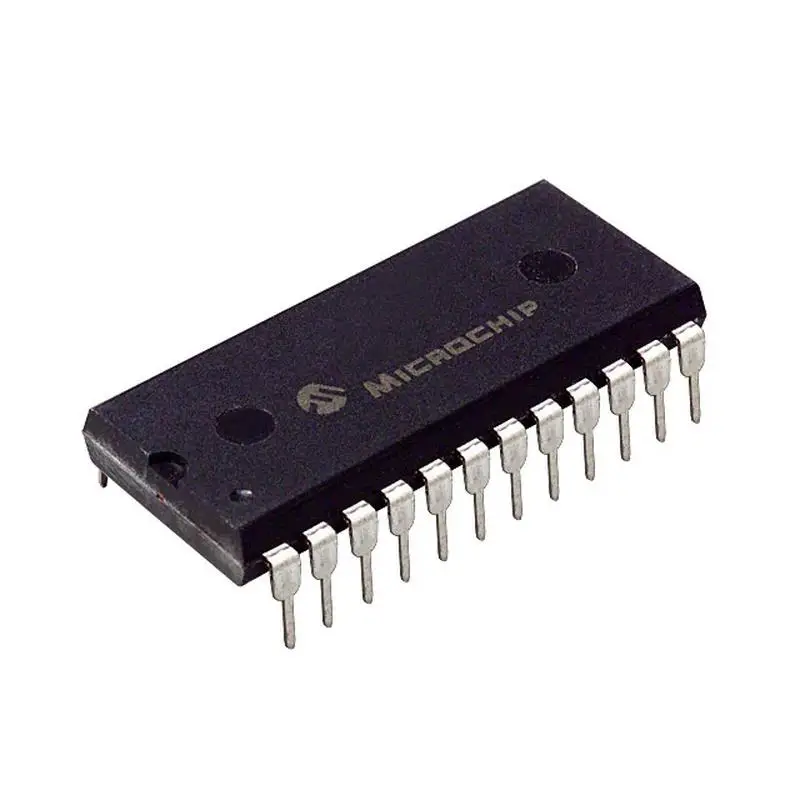

TC14433AEPG

Product Attributes

TYPE: DESCRIPTION

Category:Integrated Circuits (ICs)Power Management (PMIC)Display Drivers

Mfr: Microchip Technology

Series: -

Package: Tube

Product Status: Obsolete

Display Type: LED

Configuration: 7 Segment

Interface: BCD

Digits or Characters: A/D 3.5 Digits

Current – Supply: 1.4 mA

Voltage – Supply: 4.5V ~ 8V

Operating Temperature: -40°C ~ 85°C

Mounting Type: Through Hole

Package / Case: 24-DIP (0.600", 15.24mm)

Supplier Device Package: 24-PDIP

Base Product Number: TC14433

Documents & Media

RESOURCE TYPE: LINK

Datasheets: TC14433(A)Analog and Interface Product GuideAnalog-to-Digital Converters

Other Related Documents: Development Tools Catalog

Environmental Information: Microchip CA Prop65Microchip REACHMicrochip RoHS

Design Resources: TC14433A Development Tool Selector

PCN Obsolescence/ EOL: TC14433 09/Sep/2019

PCN Design/Specification: TC14433 10/Apr/2018

PCN Assembly/Origin: TC14433 12/Oct/2017

PCN Packaging: Label and Packing Changes 23/Sep/2015Packing Changes 10/Oct/2016

HTML Datasheet: Analog-to-Digital ConvertersTC14433(A)

EDA Models: TC14433AEPG by Ultra Librarian

Environmental & Export Classifications

ATTRIBUTE: DESCRIPTION

RoHS Status: ROHS3 Compliant

Moisture Sensitivity Level (MSL): 1 (Unlimited)

REACH Status: REACH Unaffected

ECCN: EAR99

HTSUS: 8542.39.0001
