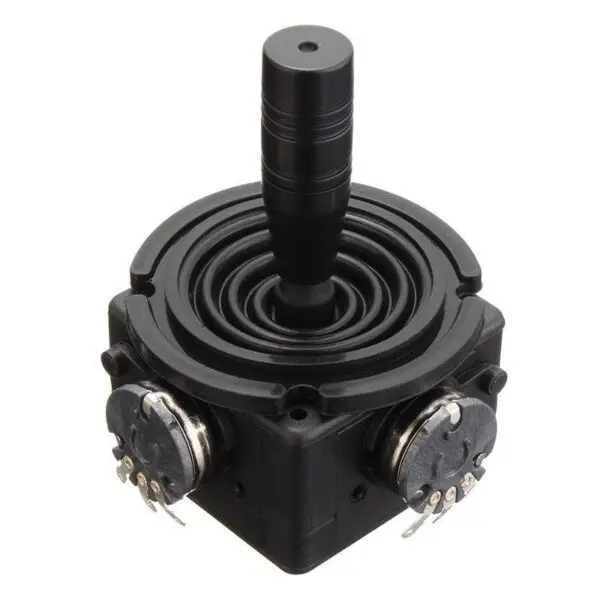

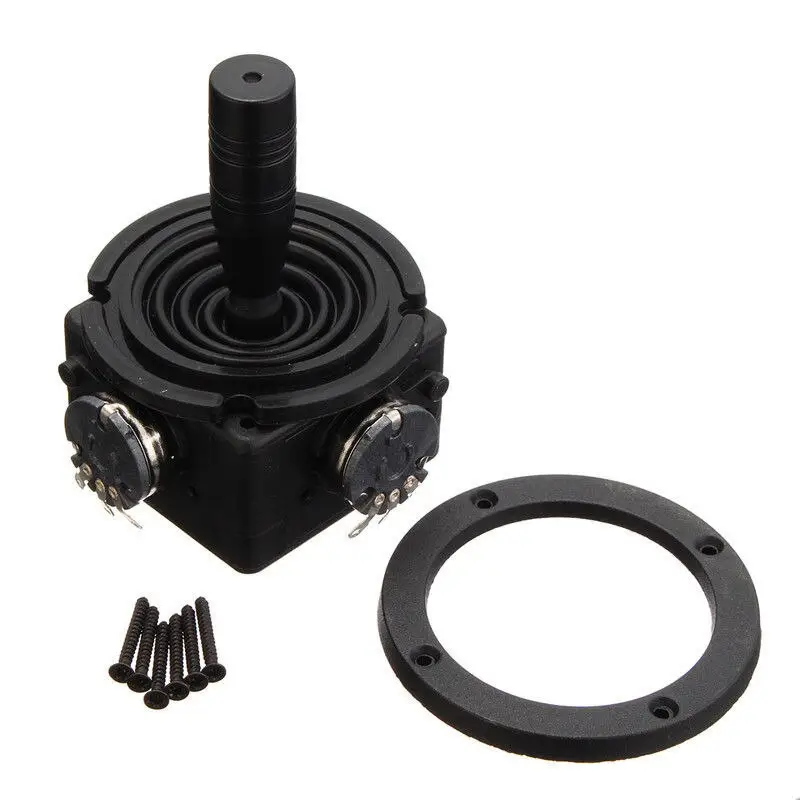

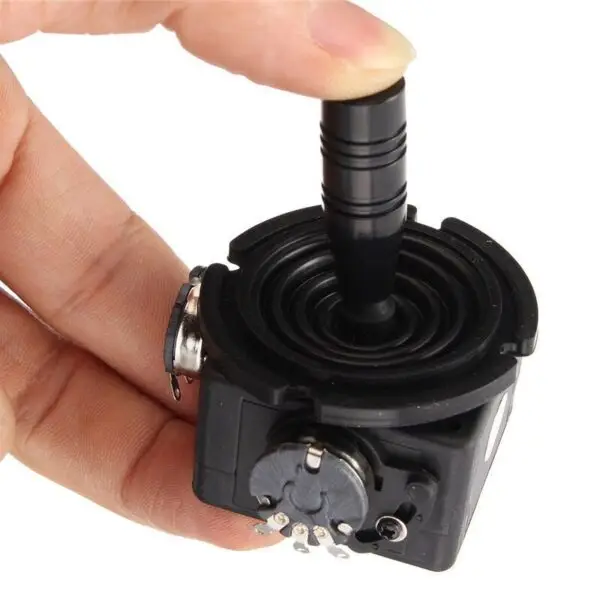

Joystick Potentiometer JH-D202X-R2/R4 5K 10K ohm 2-axis Sealed PTZ

Description:

Color: Black

Resditance Value: Standard 5KΩ

Resditance Tolerance: ±20%

Independent Linearity: ±1%

Resolution: Essentially Infinite

Temperature Coefficient Resistance: ±400 ppm/°C

Outpoot Smoothness: 0.5% maximum

X& Y Axis Electricity Corner: ±25°

Z Axis Electricity Corner: ±45°

R300Z Axis Potentiometer, R400Z Axis Potentiometer And Button Switch Lead: AWG28 Color Coded, Silver Plated, PTFE inslatedlead wires standard length 100mm other lengths on request.

Insulation Resistance: 50MΩ @ 500VDC, 60 sec.

Specification:

Operate Torque: X& Y axis 90gf and 250gf, Z axis 330gf.

Restoration Error Rate: ±0.03KΩ

Prolepsis Mechanical Lifecycle: 500,000 cycle

Operating Temperature Range: -10~ 80°C

Applications:

Move photography and television control system

Curative imaging system

Film frequency compile and produce equipment

Automatization machine control

Instruments for industrial and scientific

Paket İçeriği:

1 Adet  JH-D202X-R2
