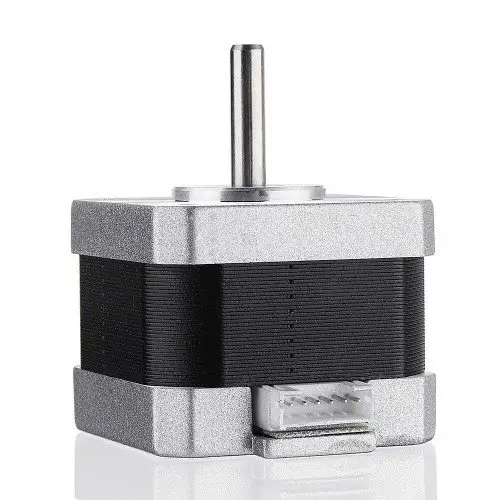

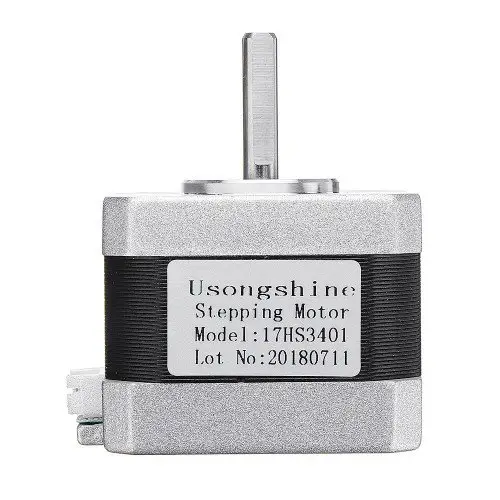

17HS3401 Nema 17 Step Motor

17HS3401 Nema 17 Step Motor

General Specification:

Step angle accuracy: + - 5%(full step,not load)

Resistance accuracy: + - 10%

Inductance accuracy: + - 20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature ----------—20deg ~+50deg

Insulation resistance:100MΩ Min,500VDC

Insultion Strength--------500VAC for one minute

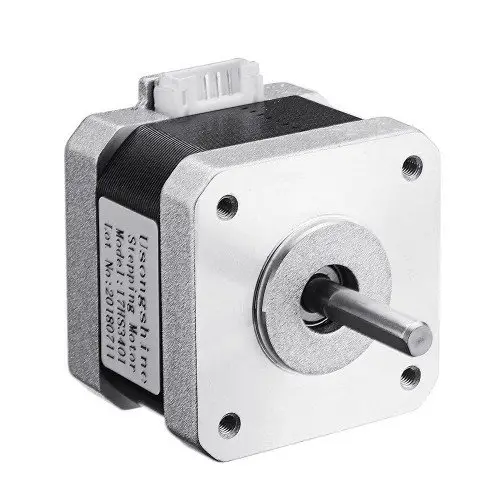

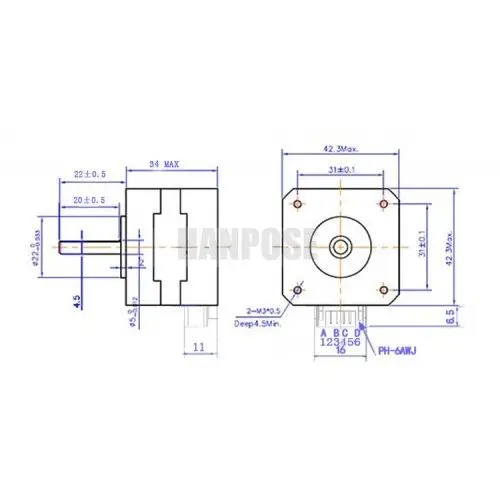

5mm diameter shaft

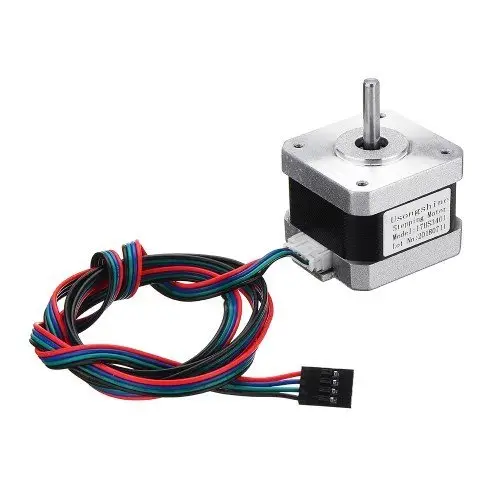

Red: A+

Green: A-

Yellow: B+

Blue: B-

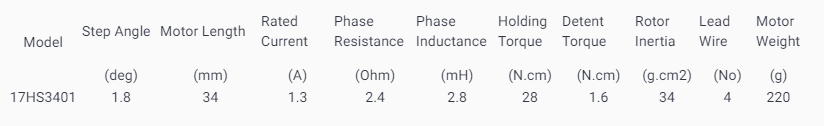

ModelStep Angle

Motor Length

Rated CurrentPhase ResistancePhase InductanceHolding TorqueDetent TorqueRotor InertiaLead WireMotor Weight

(deg)(mm)(A)(Ohm)(mH)(N.cm)(N.cm)(g.cm2)(No)(g)

17HS34011.8341.32.42.8281.6344220

Paket İçeriği :

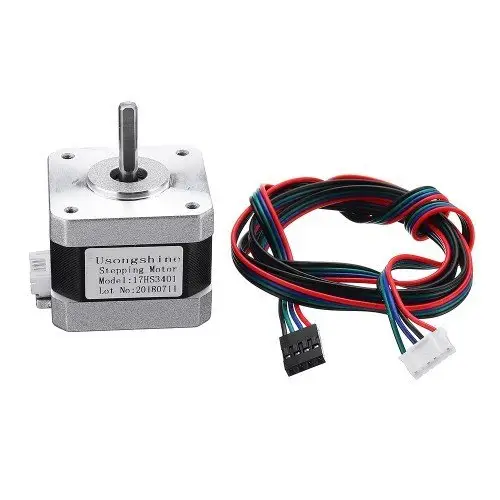

1 Adet 17HS3401 Nema17 Step Motor
